4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

Product Categories
Shenzhen Haixincheng Technology Co.,Ltd
Contact Now

4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

  • 1
  • 2

Brand Name : HXC

Model Number : EC177WC

Certification : CE,RoHs

Place of Origin : China

MOQ : 20

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 5-8work days

Packaging Details : Carton or according to customer requirements

Force range : Fc_wc:1500-5850N, Fp_wc:2700-10125N

Motor type : 3 phases synchronous Ironcore,380Vacrms (600Vdc)

Ultimate Force : 10125 N

Maximum Speed : 4 m/s

Continuous Force : 4500N

Cable life : >5,000,000 Cycles

Contact Now

Ironcore Linear Motors EC177WC series Very large force applications Force range Fc_wc 1500-5850N Fp_wc 2700-10125N

Ironcore Linear Motors EC177WC series Very large force applications Force range Fc_wc 1500-5850N Fp_wc 2700-10125N

Product advantages:

Water cooled/Air cooled are optional, width of motor setup <185mm
Very compact size, and with extremely high force density
High acceleration, high speed, submicron positioning accuracy and low power consumption
Very low attraction force and cogging
Very good heat dissipation performance
Any length of high flflex chain cables for motors can be made
electrical
Parameter Remarks Symbol Unit EC177WC-12 EC177WC-15 EC177WC-18 EC177WC-24 EC177WC-30 EC177WC-45
Ultimate Current Magnet@25°C lu Arms 13.1 26 13.5 33 20 41 27 52 28 66 41 98
Peak Current Magnet@25°C lp Arms 10 20 11 25 15 31 20 40 21 50 31 75
Continuous Current Water cooled Coil@110°C lc Arms 5.5 11 6 14 8 17 11 22 12 29 18 42
Continuous Current Air cooled Coil@110°C lc Arms 4.3 9 4.3 11 6.5 13.4 9 18 9 22 13.4 32
Back EMF Phase-Phase peak Bemf V/M/s 228 114 274 114 228 110 228 114 274 114 228 114
Resistance Per Phase Coil@25°C Rph Ω 9.1 2.27 10.8 1.82 6.06 1.45 4.54 1.14 5.4 0.91 3.61 0.61
Induction Per Phase l<0.63lp Lph Mh 77.35 19 92 15 52 12 39 10 46 8 31 5
Electrical Time Constant Coil@25°C Te Ms 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5
Power Loss All coils Pc W 713 713 891 891 1011 1011 1347 1347 1684 1684 2527 2527

thermal

Parameter Remarks Symbol Unit EC177WC-12 EC177WC-15 EC177WC-18 EC177WC-24 EC177WC-30 EC177WC-45
Thermal Resistance Coils to mount. Sfc. Rth °C/W 0.13 0.13 0.12 0.12 0.11 0.11 0.09 0.09 0.07 0.07 0.03 0.03
Temp. Sensor PTC 1kΩ/NTC

Mechanical

Parameter Remarks Symbol Unit IC177WC-12 IC177WC-15 IC177WC-18 IC177WC-24

IC177WC-

30

IC177WC-

45
Coil Unit Weight ex.cables W kg 7 7 9 9 12 12 16 16 18 18 27 27
Coil Unit Length ex.cables L Mm 248 248 296 296 336 336 440 440 568 568 840 840
Motor Attraction Force Rms@0A Fa N 5100 5100 6225 6225 7350 7350 6800 6800 12450 12450 18675 18675
Magnet Pitch N-N T mm 24 24 24 24 24 24 24 24 24 24 24 24
Power Cable Type length 0.5m(3m,5m,10m optional) Diameter mm(mm2) 10.1(4G2.5mm2 AWG14)

12.1

(4G4mm2 AWG14)

14.7

(4G

6mm2)
Sensor Cable Type length 0.5m(3m,5m,10m optional) Diameter mm(mm2) 4.9(4*0.14mm2 AWG26)
Cable life Minimum Cycles >5,000,000 >3-5millions
Bending Radius Static Minimum mm ≥4xφ ≥5xφ
Bending Radius Dynamic Minimum mm ≥7.5xφ ≥10xφ

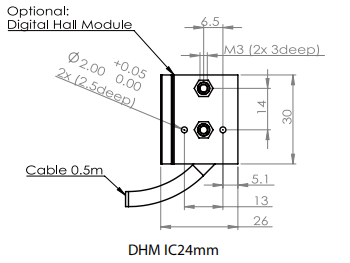

Product dimension drawing:
4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption
4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption
4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption

4500N Ironcore Linear Motor 4m/S Cogging Synchronous Low Power Consumption
