Shenzhen Haixincheng Technology Co.,Ltd is a high-tech enterprise specializing in the design, research and development, system integration and sales of motor, encoder, drive and motion control system.
Active Member

3 Years

Home > Ironless Linear Motor >

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Shenzhen Haixincheng Technology Co.,Ltd
Contact Now

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

  • 1
  • 2

Brand Name : HXC

Model Number : ELS42DHM-035

Certification : CE,RoHs

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Carton or according to customer requirements

Winding Type : Hall Integrated

Unit Weight : 0.035kg

Peak Force@20℃/s ↑ : 20N

Peak Current : 10Arms

Power Loss : 11.2W

Maximum Speed : 6m/s

Contact Now

Ironless Linear Motor Coil Unit Length 56-122mm High Power Density Submicron Positioning Accuracy

Ironless Linear Motor Coil Unit Length 56-122mm High Power Density Strong Structural Rigidity Easy To Install

Low force applications: Force range Fc: 6-18N, Fp: 20-60N
Single magnet yoke, Ironless linear motor
The Digital Hall module is built into the coil unit of motor for Integrated installation
Flat structure makes the motor lighter and thinner, assembly height less than 10mm
No attraction force and cogging, high dynamic motion performances
Excellent heat dissipation performance with big housing
High acceleration, high speed, submicron positioning accuracy and low power consumption
Any length of high flflex chain cables can be customized

Performance
Parameter Remarks Symbol Unit ELS42-03 ELS42-06 ELS42-09 ELS42DHM-03S ELS42DHM-06S ELS42DHM-09S
Winding Type S S S Hall Integrated
Motor type 3 phases synchronous Ironless, 45Vacrms (60Vdc)
Peak Force@20℃/s ↑ Magnet@25℃ Fp N 20 40 60 20 40 60
Continuous Force Coil@110℃ Fc N 5 10 15 5 10 15
Maximum Speed 60V Vmax m/s 6 6 6 6 6 6
Motor Force Constant Mount. Sfc.@20℃ K N/Arms 6 6 6 6 6 6
Motor Constant Coils@25℃ S N²/W 3 6 9 3 6 9
Electrical
Peak Current Magnet@25℃ Ip Arms 3.3 6.7 10 3.3 6.7 10
Continuous Current Coil@110℃ Ic Arms 0.8 1.7 2.5 0.8 1.7 2.5
Back EMF Phase-Phase peak Bemf V/M/S 5 5 5 5 5 5
Resistance Per Phase Coil@25℃ Rph 4.75 2.38 1.58 4.75 2.38 1.58
Induction Per Phase I<0.63lp Lph mh 0.8 0.4 0.3 0.8 0.4 0.3
Electrical Time Constant Coil@25℃ τe ms 0.16 0.16 0.16 0.16 0.16 0.16
Power Loss All coils Pc W 11.2 22.4 33.6 11.2 22.4 33.6
Thermal
Thermal R. Coils to mount. Sfc. Rth ºC/W 1.6 0.8 0.53 1.6 0.8 0.53
Temp. Sensor Temperature Cut-off None
Mechanical
Coil Unit Weight ex.cables W Kg 0.035 0.06 0.09 0.035 0.06 0.09
Coil Unit Length ex.cables L mm 56 89 122 56 89 122
Motor Attraction Force Rms@0A Fa N 0 0 0 0 0 0
Magnet Pitch N-N τ mm 16.5 16.5 16.5 16.5 16.5 16.5
Power Cable Type length 0.5m(3m,5m,10m optional) Diameter mm(mm2) Leadwires 3*0.3mm2 5.6(3*0.3mm2+5*0.08)
Sensor Cable Type length 0.5m(3m,5m,10m optional) Diameter mm(mm2) NA
Cable life Minimum Cycles ≥12,000,000
Bending Radius Static Minimum mm ≥4xφ
Bending Radius Dynamic Minimum mm ≥7.5xφ

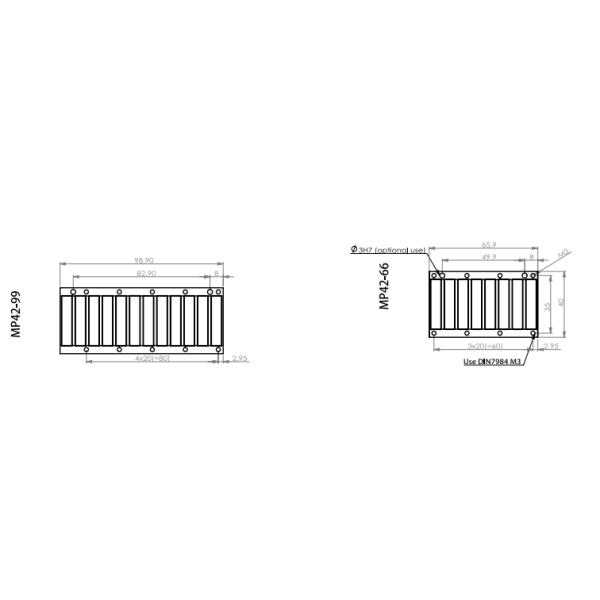

Product dimension drawing:

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Product certificate

Through the certification we allow customers to our products with more confidence, but the most important thing is the quality of our products

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

Factory environment

Length 56mm Coil Linear Motor Structural Rigidity Easy To Install

FAQ:


Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 5 workdays.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty.

Q7: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
