High Precision Galvanometer Scanner 25 Bit Position Galvo Scanner Head

  • 1
  • 2
  • 3

Brand Name : HXC

Model Number : VCM F1

Certification : CE

Place of Origin : China

MOQ : 20

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 5-8work days

Packaging Details : Carton or according to customer requirements

Type : Dynamic Focus Module

Input Beam Aperture (mm) : 20

Output Beam Aperture (mm) : 40

Travel Length (mm) : M20

Tracking Error (ms) : 0.7

Typical Speed (mm/s) : ≤80

Contact Now

Dynamic Focus Module High Precision Grating Encoder As Feedback With 25 Bit Position Resolution

Dynamic Focus Module High Precision Grating Encoder As Feedback With 25 Bit Position Resolution

VCM F1 adopts the traditional voice coil motor design scheme, linear motor structure is simple, high stability. Using high precision grating ruler as position feedback, position resolution accuracy is 25 bits. Digital encoder technology greatly improves positioning accuracy, in addition to extremely low noise, excellent linearity and minimal drift. VCM F1 is a digital processing driver technology based on FPGA. The digital driver has excellent anti-interference ability and excellent dynamic performance. In addition, it has good waterproof and dustproof performance.

Key Features Of Vcm F1

High-precision grating encoder as feedback with 25 bit position resolution

Extremely low noises, excellent linearity and lowest drift

Mainly applying to dynamic auto-focusing, it is able to combine with galvo scanning system to 3D dynamic scan system. The widely applications are used successfully in 3D laser marking, 3D printing and large format processing, etc

Technical parameters

specifications VCM F1
Input Beam Aperture (mm) 20
Output Beam Aperture (mm) 40
Travel Length (mm) M20
Tracking Error (ms) 0.7
Typical Speed (mm/s) ≤80
Focus Speed (m/s) /
Repeatability (pm) <0.5
Nonlinearity (%) 0.05
Long-term Drift over 8 hours (μm) <3
Power Requirements ±15VDC,≥3A
Communication Protocol XY2-100
Operation Temperature () 25±10

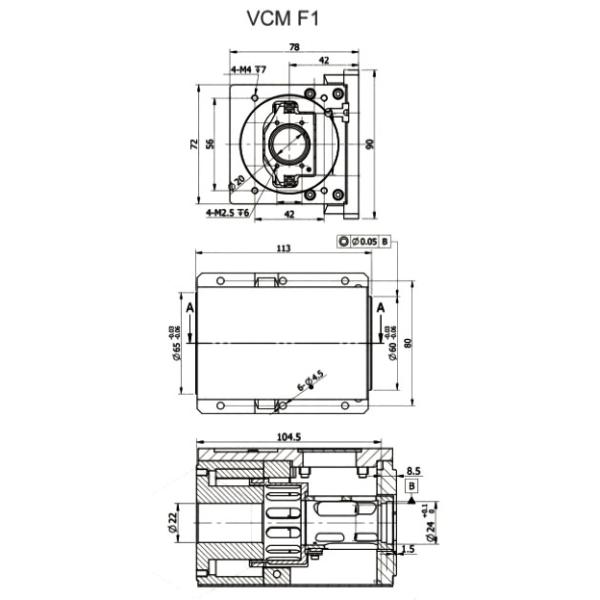

Technical drawing
