Sub Micron Positioning Accuracy Kinematic High Speed Linear Motor Low Power Consumption

Shenzhen Haixincheng Technology Co.,Ltd
Contact Now

Sub Micron Positioning Accuracy Kinematic High Speed Linear Motor Low Power Consumption

  • 1
  • 2
  • 3

Brand Name : HXC

Model Number : HXC-EL32

Certification : CE

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : Western Union, T/T, L/C

Supply Ability : 5000

Delivery Time : 5-8 work days

Packaging Details : Carton or according to customer requirements

Type : Kinetic Motor

Motor Type : No Iron Core

Peak Thrust : 92N/Fc

Motor Constants : 15N²/W

Kinetic Weight : 0.08kg

Kinetic Length : 97mm

High Light : High Performance High Flexibility Drag Chain Cable Motor / High Dynamic Large Thrust Ironless Motor/5m/s Ironless Linear Motor

Contact Now

High Speed Low Power Consumption Sub-Micron Positioning Accuracy Kinematic Motor

High acceleration, high speed, sub-micron positioning accuracy and low power consumption

Extremely light kinetic mass and high power output ideal for vertical applications

Very compact and with high thrust density

0 suction and 0 cogging forces, high dynamic motion performance

Good thermal performance for small thrust applications

Customized motors with any length of highly flexible drag chain cable

Ironless Linear Motor Performance Parameters:

Performance Parameters
Parameters Remarks Symbols Unit EL32-03 EL32-06
Winding Type S S
Motor Type 3 phases synchronous lronless,45Vacrms(60Vdc)
Peak Forcea20/s↑ Magnet@25 Fp N 46 92
Continuous Force Coil@120 Fc N 11.5 23
Maximum Speed @6ov Vmax m/s 5 5
Motor ForceConstant Mount. sfc@20 K N/Arms 7.3 7.3
Motor Constant Coikse25 S N²/W 7.5 15
Ironless Linear Motor Electrical Parameters
Peak Current Magnet@25℃ lp Arms 6.3 12.6
Continuous Current Coil@120 lc Arms 1.6 32
BackEMF PhasePhase peak Bemf V/M/S 6.0 6
Resistance Per Phase Coila25 Rph 2.4 1.175
Induction Per Phase l<0.63lp Lph mh 8 4
Electrical Time Constant Coile25 τe ms 0.355 0.355
Power Loss All coils Pe W 240 47
Ironless Linear Motor Thermal performance parameters
Thermal R. Coils to mount.Sfc. Rth /W 3.2 1.6
Temp.Sensor Temperature Cut-off NTC Optional
Ironless Linear Motor Mechanical Parameters
Coil Unit Weight ex.cables W kg 0.04 0.08
Coil Unit Length ex.cables L mm 49 97
Motor Attraction Force Rms@0A Fa N 0 0
Magnet Pitch N-N τ mm 24 24
CableMass M kg/m 0.065 0.065
Cable Type(Flex.cable) length 1m d mm(AwG) 4.5(24) 4.5(24)
Power Cable Type length 0.5m(3m,5m,10m optional) Diameter mmtmm²) 4.5(3*0.3mm²)
Sensor CableType length 0.5m(3m,5m,10m optional) Diameter mm(mm²) Customi Zable
Cablelife Minimum Cycles ≥12,000,000
Bending Radius Static Minimum mm ≥4xφ
Bending Radius Dynamic Minimum mm ≥7.5xφ

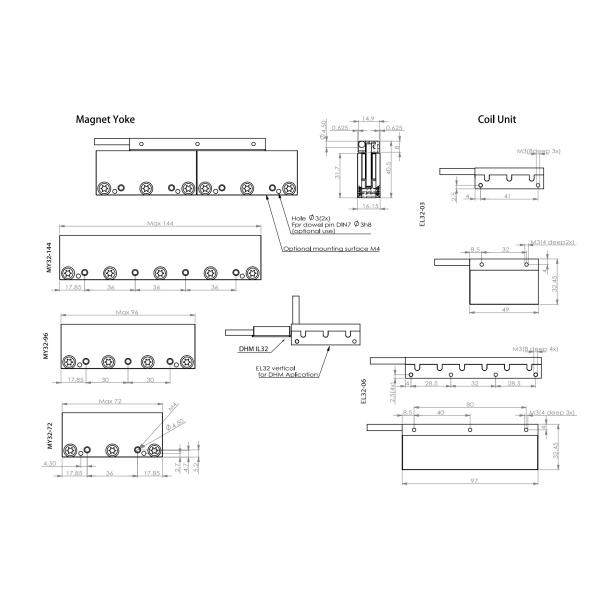

Dimensional assembly parameters diagram:
