High Accuracy Three Phase Linear Motor Small Ironless Magnetic High Force

Shenzhen Haixincheng Technology Co.,Ltd
Contact Now

High Accuracy Three Phase Linear Motor Small Ironless Magnetic High Force

Brand Name : HXC

Model Number : EL150

Certification : CE,RoHs

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 5-8work days

Packaging Details : Carton or according to customer requirements

Motor type : 3 phases synchronous Ironless, 230Vacrms (320Vdc)

Peak Force@20℃/s ↑ : 3000N

Maximum Speed : 3.2m/s

Power Loss : 275W

Temp. Sensor : PTC 1KΩ/NTC

Force range : Fc:250-1500N, Fp:1250-7500N

Contact Now

Three Phase Linear Motor High Accuracy Small Ironless Magnetic High Force Motor

Three Phase Linear Motor Performance
Parameter Remarks Symbol Unit EL150-03 EL150-06 EL150-09
Winding Type N S N S N S
Motor type 3 phases synchronous Ironless, 230Vacrms (320Vdc)
Peak Force@20℃/s ↑ Magnet@25℃ Fp N 1000 1000 2000 2000 3000 3000
Continuous Force Coil@110℃ Fc N 250 250 500 500 750 750
Maximum Speed 60V Vmax m/s 1.6 3.2 1.6 3.2 1.6 3.2
Motor Force Constant Mount. Sfc.@20℃ K N/Arms 177 84 177 84 177 84
Motor Constant Coils@25℃ S N²/W 913 1826 2739


Three Phase Linear Motor Electrical

Peak Current Magnet@25℃ Ip Arms 5.6 11.9 11.3 23.8 16.9 35.7
Continuous Current Coil@110℃ Ic Arms 1.5 3 3 6 4.5 9
Back EMF Phase-Phase peak Bemf V/M/S 145 69 126 60 145 69
Resistance Per Phase Coil@25℃ Rph 11.5 2.84 5.75 1.45 3.8 0.95
Induction Per Phase I<0.63lp Lph mh 34.5 8.5 17.3 4.4 11.4 2.9
Electrical Time Constant Coil@25℃ τe ms 3 3 3 3 3 3
Power Loss All coils Pc W 92 92 183 183 275 275

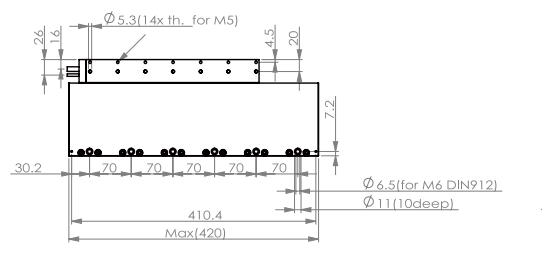

Three Phase Linear Motor Dimension Drawing:
